ZGT Optical Comm LimitedAbout Usno.A401, 1 jour plus tard, immeuble, parc électronique de la station ying, communauté de longue journée, rue de longue journée, district de pingshan, ville de la ville de She N, province du bâtiment GU case G, Chine.ZGT has been committed in fiber optical connectivity products for 20 years. We design, manufacture for customers all of the world.ZGT has two optical manufacturing plants and a mould & plastic injection factory located in Shenzhen China and Henan China, with 400 employees and 7000m2 clean workshop for adaptors, patch cords, MPO and attenuators. With monthly capacity of 3 million pcs of adaptors, 1 million of connectors, 1 million of patch cords, 20 thousands of MTP terminals and 20 thousands

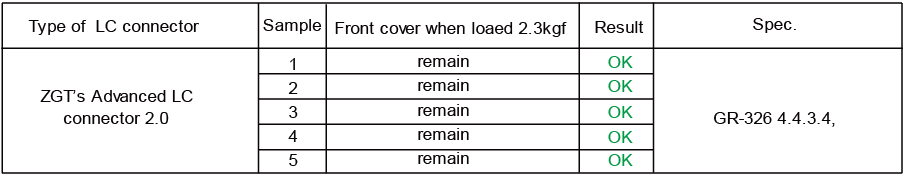

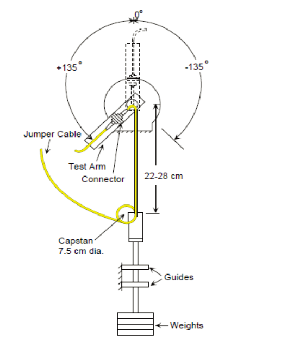

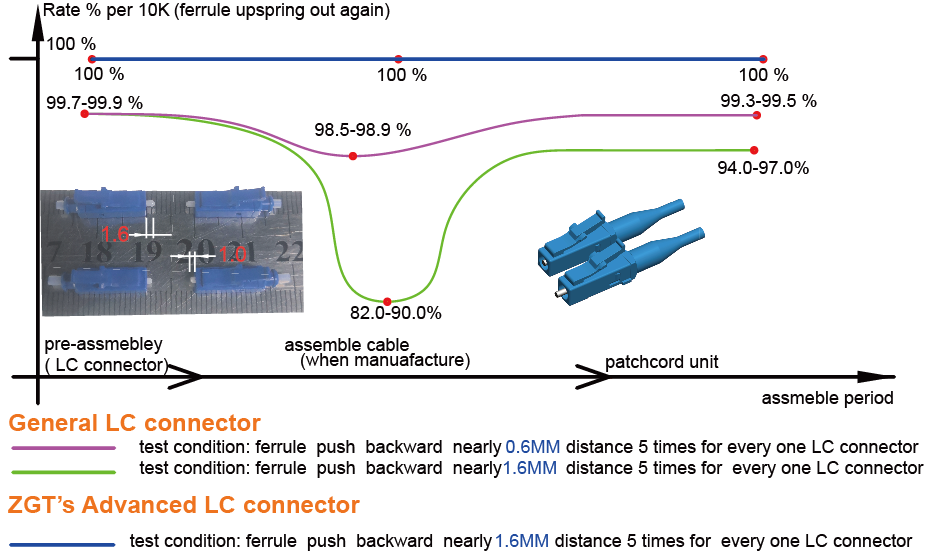

Features: IEC 61754-20 and GR-326 Compliant. Materials Conform to REACH and Rohs. ZGT's patent design. Advantages： ZGT's unique design brings two advantages to this product: 100% Reliability of Springback The springback of the ferrule is very smooth, which completely avoid the stuck, no matter in patch cord production line or installation site, you don’t have to worry about the small probability of stuck problem. More strong in proof test With better performance in mechanical test, can meet Telcordia GR-326 4.4.3.4. Part & Material
Parts
Material
Ferrule
Zirconia
Housing
PEI
Dust cap
PP
Spring
Stainless steel
Boot
TPV
Specifications
SM
MM
9/125
50/125
62.5/125
OM3&OM4
UPC
APC
PC
Insertion loss
≤0.3dB/Grade B/Grade C
Return loss
≥50dB/≥55dB
≥60dB/≥65dB
≥35dB
Durability
1000 times △≤0.2dB
Working Tem.
-40 to +80℃
Storage Tem.
-40 to +80℃
1. Optical fiber communication system
2. Limited TV network
3. LAN and optical domain network
4. Fiber to the Home (FTTP)
5. Video transmission
6. Test instrument
