Connecteurs rapides

Description:

ZGT provide LC/PC and LC/APC fast field assembly connectors, for 3.0mm round cable and 2.0*3.0mm flat cable.The monthly production capacity is 500k pcs, mainly used in FTTH, FTTX and Outside Plant.

Features:

Pre-embedded fiber and pre-polished ceramic ferrule (PC/APC) ensures excellent optical performance

Matching oil (Same refractive index as fiber) used in the high precision core parts to ensure the high stability and reliability of the connector

ALL connectors tested for insertion loss and return loss before leaving the factory

Less than 1 minute operation time, easy to assembly

Over 98% splicing success rate for single time assemble, total splicing success rate more than 99

More than 10 times for re-assembling

Life Span over 20 years

Specifications:

Parameters	Specifications
Dimensions (mm)	61 x 9 x 7
Applicable Cable	3.0mm
Fiber Diameter (um)	125
Fiber Mode	SM / MM
Insert Loss (dB)	≤0.3
Return Loss (dB )	≥50 (APC) ≥45 (PC)
Tensile Strength (N)	>50
Operating Temperature (°C)	-20 ~ +75
Circulatory Test During High-low Temperature (dB)	△IL ≤ 0.3, △RL ≤ 5
Vibration and Impaction (dB)	△IL ≤ 0.3, △RL≤ 5
High Temperature and Humidity Test (85°C/85%H)	△IL ≤ 0.3, △RL≤ 5

envoyer un message

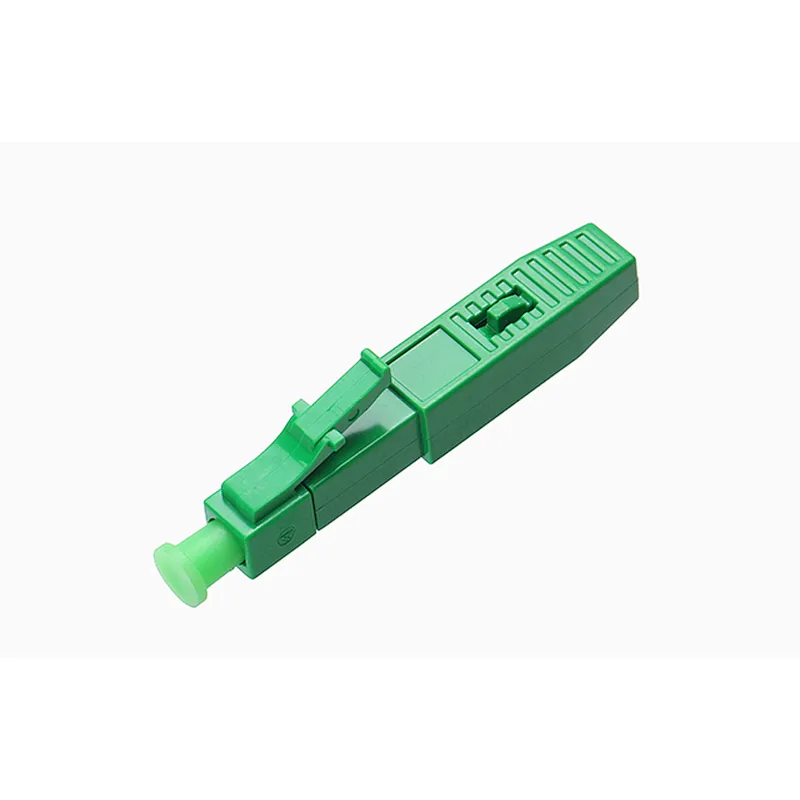

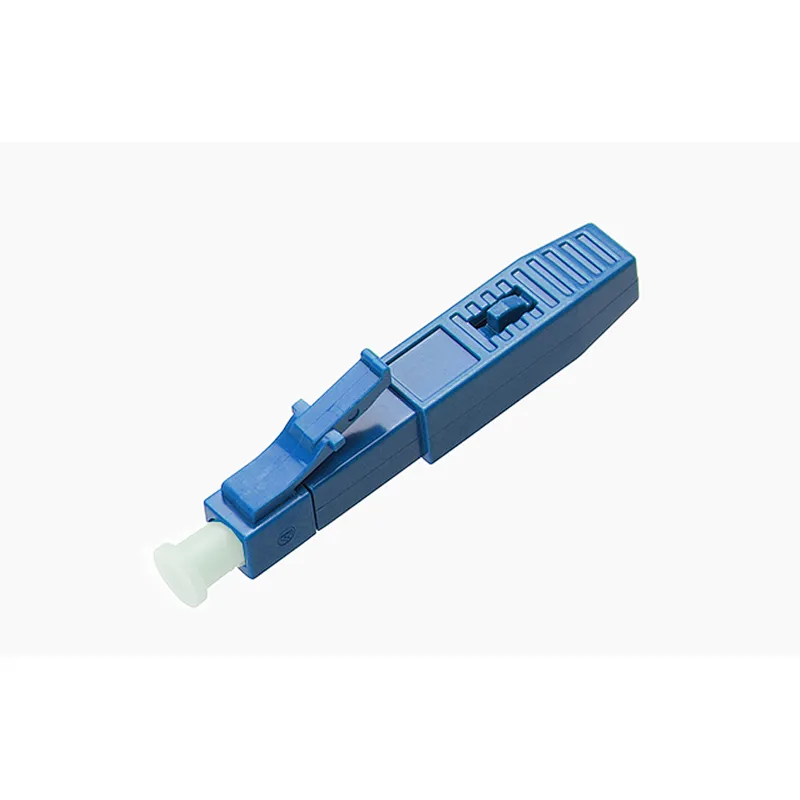

LC Fast Field Connector
