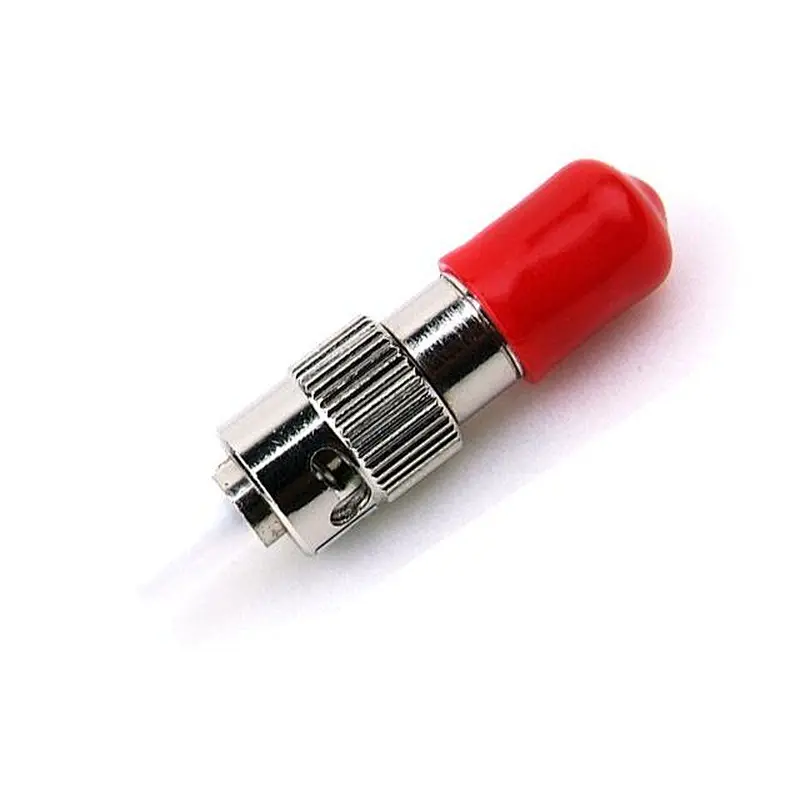

ST Plug In Attenuator

Modèle：ST Plug In Attenuator

Envoyez à

Mode de livraison

Coût		Délai de livraison estimé	Suivi

J`aime les favoris

Les catégories:

Description du produit
Description de l'application

Description:

ZGT provide fixed attenuators and variable attenuators, with different connectors such as SC,

SC/APC, LC, LC/APC, FC, FC/APC, ST, MU, E2000, E2000/APC and Hybrid Attenuators. There

are adapter version and plug in version, attenuation range from 1dB to 30dB. The monthly

production capacity is 300k, all products are designed and controlled under IEC standard,

meet the requirement of Telcordia GR-326 and TIA/EIA as well.

Competitive Advantage:

Telcordia GR-326, IEC, TIA/EIA Standard compliant

100% Optical performance inspection and end-face geometric

RoHS Compliance

Customized design and production.

Optical Performance

Parameter	Description
Color	Blue, green or tailor made
Return Loss	≥50 (PC)
	≥55 (UPC)
	≥65 (APC)
Attenuation	From 1dB to 30dB
Tolerance	±0.5dB(1～10dB), ±1.0dB(11～30dB)
Durability	1000 times
Anti Pulling Force	200~600G
Operating Temp(℃)	-40ºC to +85ºC
Storage Temp(℃)	-40ºC to +85ºC
