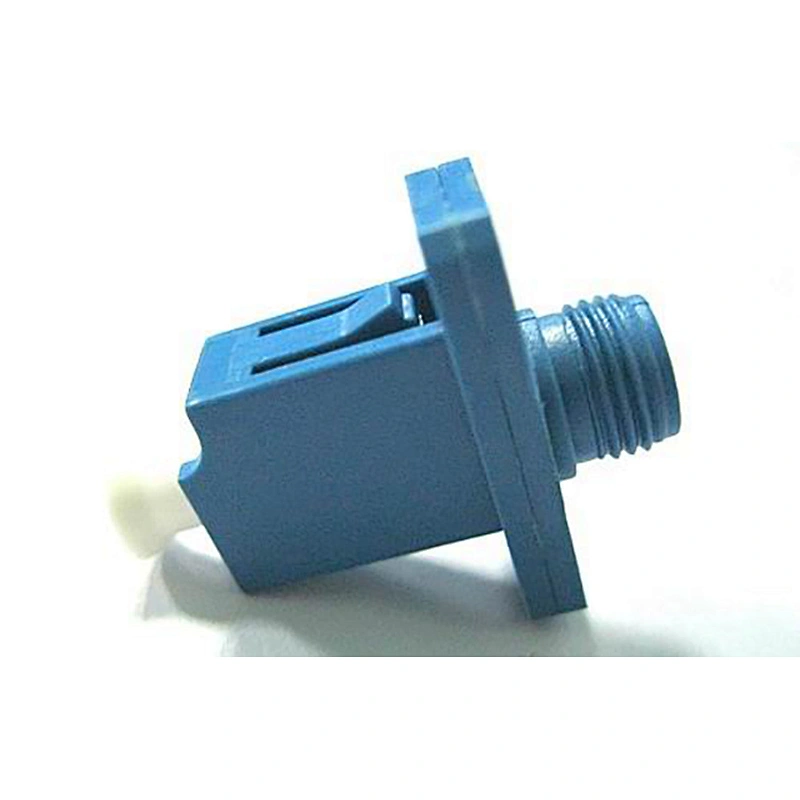

FC to LC hybrid adapter, plastic housing

FC to LC hybrid adapter, plastic housing

Model NO.:FC to LC hybrid adapter, plastic housing
Categories: Hybrid Adaptor(F-F)
Competitive Advantage:
Telcordia GR-326, IEC, TIA/EIA Standard compliant.
100% Optical performance inspection.
Low Insertion Loss.
RoHS Compliance.
Customized design and production.
Parts &Material
PartsMaterialRemarks
SleeveCeramic or PB
HousingPBTFlammability UL94 V-0
Dust capABS、PP/PEFlammability UL94 V-0
ClipStailess steel
Optical Performance
Premium GradeStandard Grade
Insertion Loss≤0.1dB≤0.2dB
Durability1000 times1000 times
Enviroment and Mechanical
 PropertiesTest conditionConformanceTest result
Vibration10-55Hz, 1.5mm, 60minIEC61300-2-1≤0.5dB
Mating Durability1000 Mating, clean every 25 mating.IEC61300-2-2≤0.5dB
Impact1.5m, 8 dropsIEC61300-2-6≤0.5dB
Strength of Coupling Mechanism40N, 10Min, L=22-28cmIEC61300-2-12≤0.5dB
Temperature Cycling 40ºC to +75ºC, 40 cyclesIEC61300-2-22≤0.5dB
Temperature humidty cycling40ºC, 95%, 96HrIEC61300-2-21≤0.5dB
Operating Temperature -40ºC to +85ºC≤0.5dB
Storage Temperature -40ºC to +85ºC≤0.5dB
1. Optical fiber communication system
2. Limited TV network
3. LAN and optical domain network
4. Fiber to the Home (FTTP)
5. Video transmission
6. Test instrument
