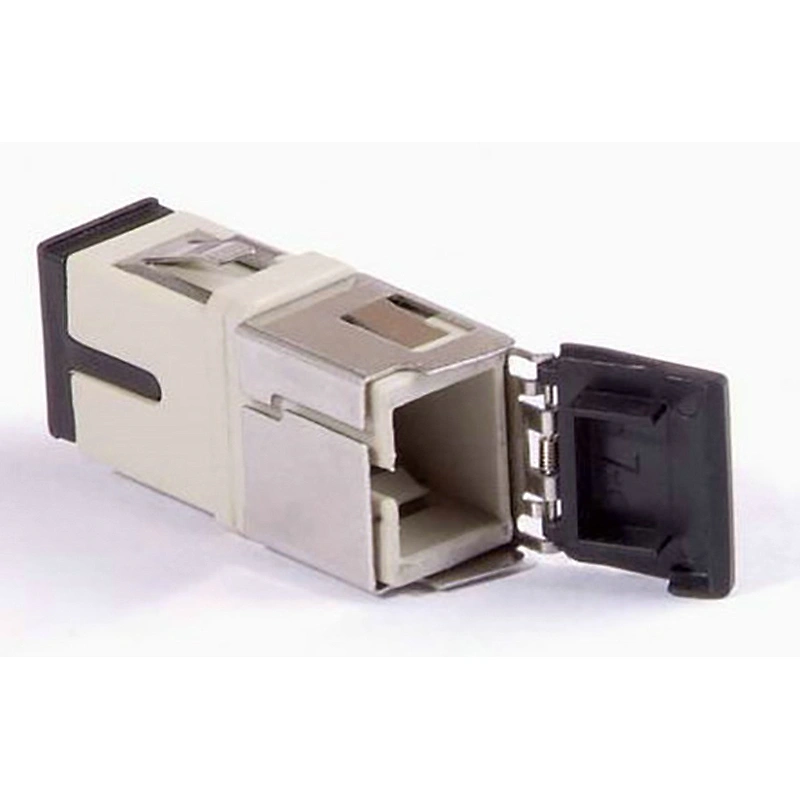

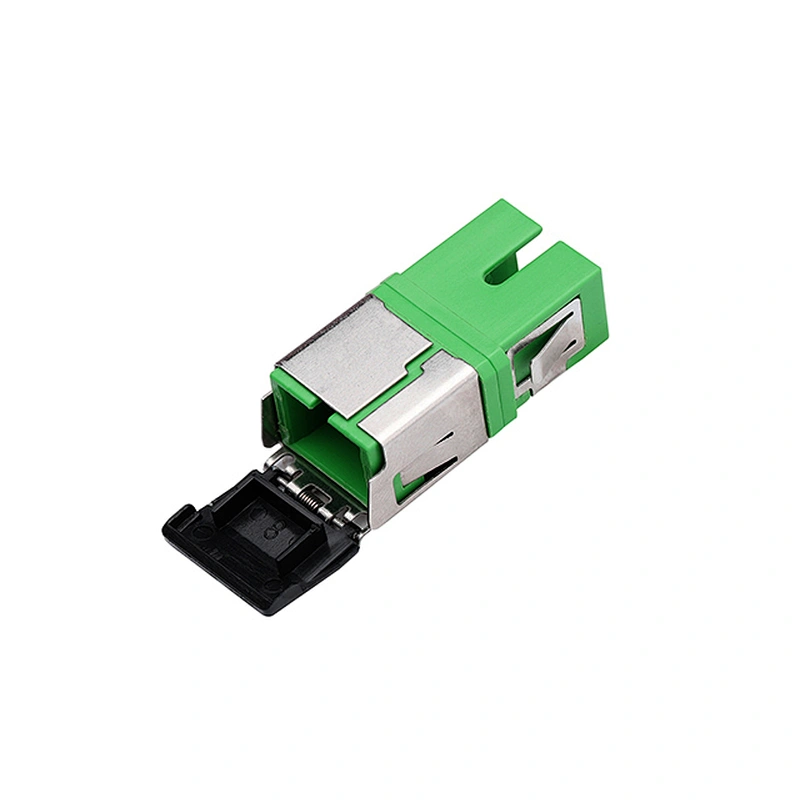

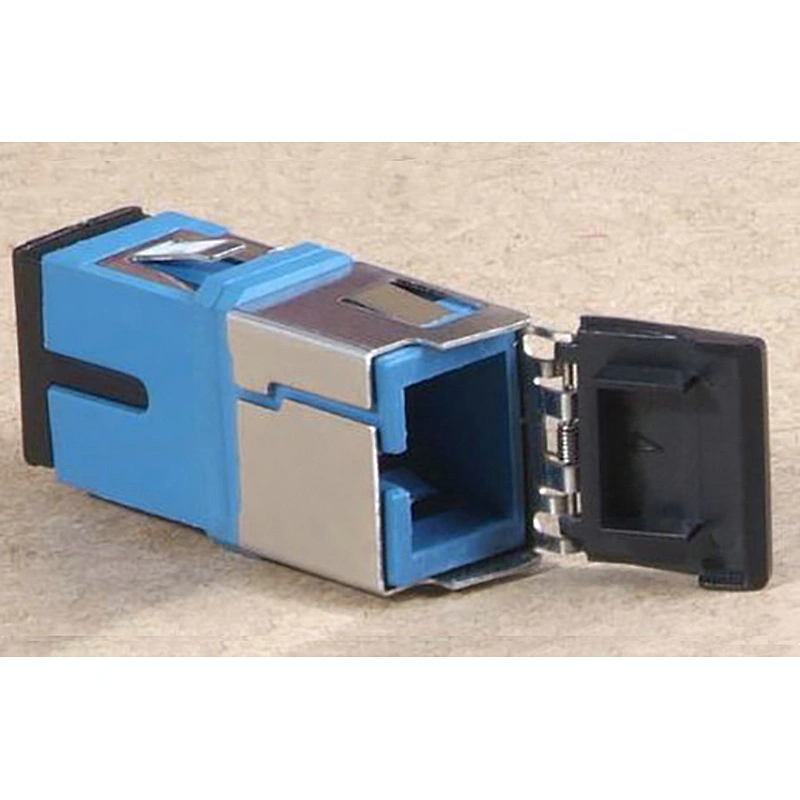

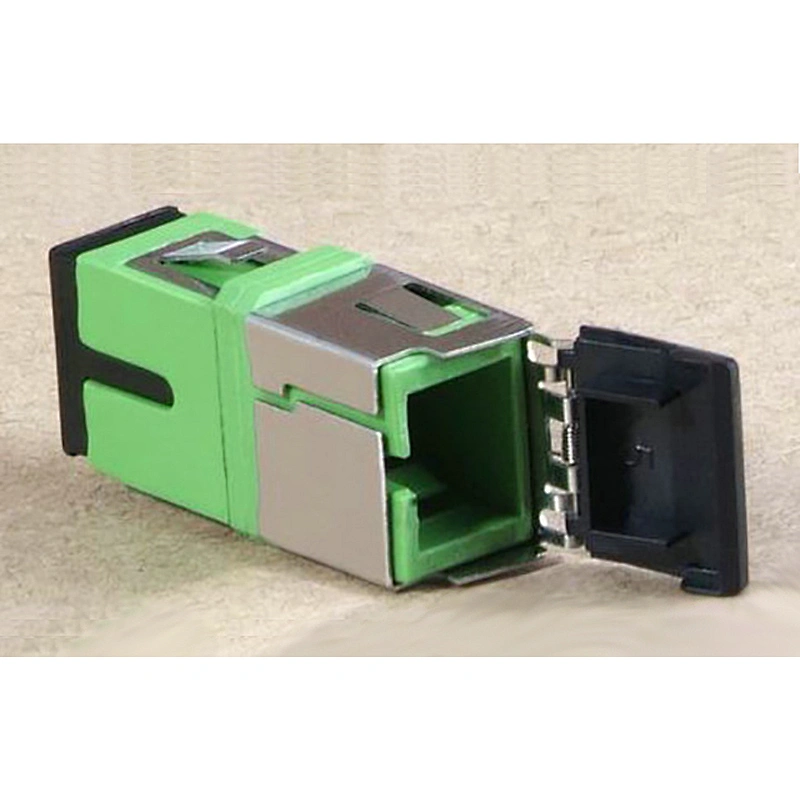

Model NO.:SC SX Adapter With Shutter Adaptor
Categories: Retactable Shutter
Competitive Advantage:
Telcordia GR-326, IEC, TIA/EIA Standard compliant.
100% Optical performance inspection.
Low Insertion Loss.
RoHS Compliance.
Customized design and production.
Parts &Material
PartsMaterialRemarks
SleeveZirconia, PB
HousingStailess steel、PBT/PCFlammability UL94 V-0
Dust capABS、PP/PEFlammability UL94 V-0
ShutterPBTFlammability UL94 V-0
Metal ClipStainless Steel

Metal Clip
Optical Performance
Premium GradeStandard Grade
Insertion Loss≤0.1dB≤0.2dB
Durability1000 times1000 times
Enviroment and Mechanical
PropertiesTest conditionConformanceTest result
Vibration10-55Hz, 1.5mm, 60minIEC61300-2-1≤0.2dB
Mating Durability1000 Mating, clean every 25 mating.IEC61300-2-2≤0.2dB
Impact1.5m, 8 dropsIEC61300-2-6≤0.2dB
Strength of Coupling Mechanism40N, 10Min, L=22-28cmIEC61300-2-12≤0.2dB
Temperature Cycling40ºC to +75ºC, 40 cyclesIEC61300-2-22≤0.2dB
Temperature humidty cycling40ºC, 95%, 96HrIEC61300-2-21≤0.2dB
Operating Temperature-40ºC to +85ºC≤0.2dB
Storage Temperature-40ºC to +85ºC≤0.2dB




1. Optical fiber communication system
2. Limited TV network
3. LAN and optical domain network
4. Fiber to the Home (FTTP)
5. Video transmission
6. Test instrument
